Enhancing System Efficiency with Multiple Cyclone Arrangements
At Heumann Environmental we evaluate each application to determine the best technical solution at the most economical price point. To meet diverse operational needs, we offer a range of multicyclone arrangements designed for optimal performance.
Cyclone arrangements refer to both the number of cyclone bodies used and their configuration within a system. When multiple cyclones are required, they can be arranged in either parallel or series, each offering distinct advantages based on airflow demands, particulate loads, and space constraints.
Parallel Cyclone Arrangements
Parallel cyclone arrangements use multiple cyclone separators operating simultaneously to handle high airflow volumes efficiently, each handling a portion of the total airflow. By distributing the workload across multiple cyclone bodies, this setup significantly reduces the system’s height along with transportation expenses.
For example, there are many applications where a cyclone system could be designed with a single cyclone body. However, because of economic or space realities, the use of two (2) cyclone bodies in parallel is a more effective solution.
Unlike series configurations, parallel setups do not accumulate energy consumption in the form of pressure drop—for example, two cyclones operating at 6” W.C. maintain a total pressure drop of 6” W.C.

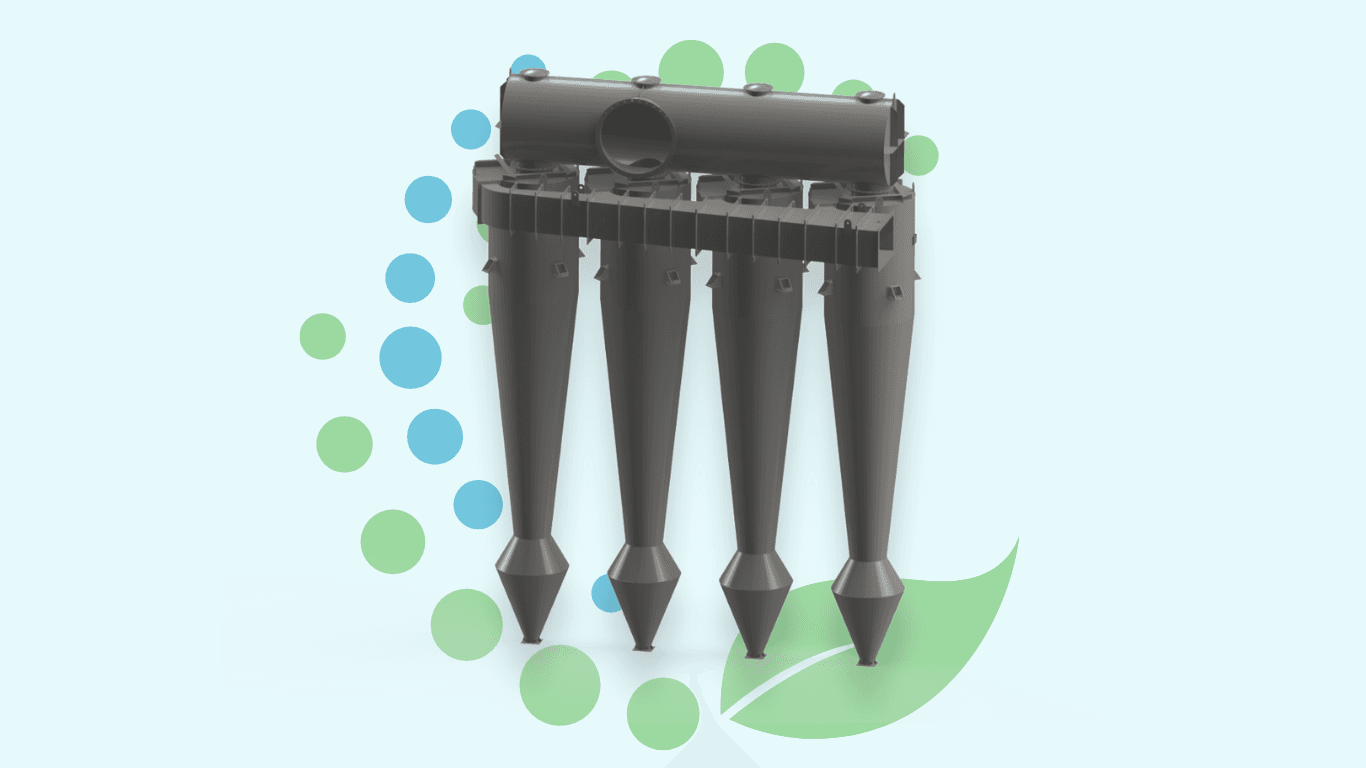

Heumann Environmental offers a range of parallel multicyclone configurations, including Dual, Quad, and Hex arrangements, tailored to meet various industrial demands.
Series Arrangement
A series cyclone arrangement consists of multiple cyclones placed sequentially, where the output of one cyclone feeds into the next. This multi-stage process enhances particle separation in applications with substantial particulate loading concentrations.
How It Works
It is important to note that the pressure drop across cyclones in series is cumulative, unlike in a parallel cyclone arrangement. For example: if a 1st stage cyclone body is operating at 6” W.C. pressure drop, and the 2nd stage cyclone body is operating at 8” W.C., the total pressure drop across both cyclones is 14” W.C.
The Decision to Use Multiple Cyclone Arrangements
As a rule of thumb, if an application can be served by a single cyclone body arrangement, that will be the most cost-effective solution for the application. However, this rule breaks down when faced with the following challenges.
When Are Multiple Cyclone Arrangements Required?
High Gas Flow Rates: For applications where the gas flow rate is substantial, a single cyclone can become impractically large. For instance, a process handling 60,000 ACFM could require a single cyclone over 11 feet in diameter and 60 feet tall, making transportation and installation extremely costly. Splitting airflow across multiple cyclones resolves this issue.
Heavy Particulate Loads: In processes with substantial dust or particulate matter, a multi-stage cyclone system can significantly improve collection efficiency. A 1st stage precleaner can capture larger particles before a 2nd stage cyclone refines separation.
Explosion Protection Needs: When dealing with explosive particulate, it can be particularly challenging to install explosion protection systems (such as explosion panels) on a single body cyclone arrangement. Often it can be more effective to split the airflow into parallel cyclone bodies to achieve the needed explosion protection.
Space Constraints: The space available for cyclones is frequently constrained by other process equipment. If there are height restrictions, multiple cyclones in parallel may be required. If there are footprint restrictions, perhaps cyclone bodies need to be arranged in a line.
Meeting Industrial Demands with MultiCyclone Arrangements
Certain industrial processes require higher collection efficiency to comply with strict emissions regulations and operational demands. Factors such as high airflow rates, heavy particulate loads, and stringent environmental standards often call for a more advanced solution. In such cases, integrating multiple cyclone bodies within a system greatly enhances dust separation and overall performance.
By optimizing space, improving safety, and maximizing efficiency, multicyclone arrangements offer a scalable and effective solution for challenging applications.
